SpringBoot2.x系列教程28--SpringBoot中利用Redis实现缓存功能详细教程
前言
随着互联网中Web2.0网站项目的兴起,传统的关系数据库在应付Web2.0网站,特别是超大规模和高并发的SNS社交类型的网站时,已经显得力不从心,例如:
1️⃣. High performance - 对数据库高并发读写的需求。
2️⃣. Huge Storage - 对海量数据的高效存储和访问的需求。
3️⃣. High Scalability && High Availability- 对数据库的高可扩展性和高可用性的需求。
传统的关系型数据库,例如Oracle、MySQL等都很难满足高并发、实时海量存储的需求,所以这时候就得需要有NoSQL类型的数据库,来解决高并发、实时海量存储带来的挑战,尤其是大数据应用的难题。
所以今天 壹哥 带各位学习如何在SpringBoot中关联Redis,利用Redis实现数据库查询的缓存功能,以此来提高我们项目的运行效率。
一. Redis简介
Redis的内容有很多,如果你没有Redis的基础,是需要专门学习的。本文不是专门的Redis教程,所以这里只对Redis进行简单介绍,各位可以阅读我其他的Redis教程。
1. Redis概念
Redis:REmote DIctionary Server(远程字典服务器),它是一个完全开源免费且遵守BSD协议,用C语言开发的,高性能的key-value型的分布式内存数据库,而且它还是一种基于内存运行并支持持久化的NoSQL数据库,可用于缓存、事件发布或订阅、高速队列等场景。该数据库使用ANSI C语言编写,支持网络,提供字符串、哈希、列表、队列、集合结构直接存取,基于内存,并且可持久化。Redis是当前最热门的NoSql数据库之一,也被人们称为数据结构服务器。
2. 环境配置要求
要想实现本文效果,各位需要配置如下开发环境。
Springboot 2.2.5;
Redis 3.2.x;
Redis可视化工具Redis Desktop Manager
二. SpringBoot整合Redis实现步骤
接下来我就带大家在SpringBoot中实现Redis的整合。
1. 创建Web项目
我们按照之前的经验,创建一个SpringBoot的Web程序,具体过程略。
2. 添加依赖
接下来在pom.xml文件中添加核心依赖包,如下所示:
<dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-jpa</artifactId> </dependency> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-data-redis</artifactId> </dependency> <!--使用默认的Lettuce时,若配置spring.redis.lettuce.pool则必须配置该依赖--> <dependency> <groupId>org.apache.commons</groupId> <artifactId>commons-pool2</artifactId> </dependency> <dependency> <groupId>redis.clients</groupId> <artifactId>jedis</artifactId> <version>2.7.3</version> </dependency> <!--解决jdk1.8中新时间API的序列化时出现com.fasterxml.jackson.databind.exc.InvalidDefinitionException的问题--> <dependency> <groupId>com.fasterxml.jackson.datatype</groupId> <artifactId>jackson-datatype-jsr310</artifactId> </dependency> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <scope>runtime</scope> </dependency> <dependency> <groupId>com.alibaba</groupId> <artifactId>druid</artifactId> <version>1.1.10</version> </dependency> </dependencies> 复制代码
3. 添加yml配置文件
SpringBoot集成Redis主要是使用RedisTemplate类进行操作,但是在SpringBoot2.0以后,底层默认访问的不再是Jedis而是lettuce。
3.1 jedis客户端和lettuce客户端的区别
jedis采用的是直连redis server,在多线程之间公用一个jedis实例,是线程不安全的。想要避免线程不安全,可以使用连接池pool,这样每个线程单独使用一个jedis实例。但是线程过多时,带来的是redis server的负载较大,有点类似BIO模式。
lettuce采用netty连接redis server,实例在多个线程间共享,不存在线程不安全的情况,这样可以减少线程数量。当然在特殊情况下,lettuce也可以使用多个实例,有点类似NIO模式。
3.2 yml配置文件
创建一个application.yml文件,在这里配置MySQL与Redis数据库的信息。
spring: datasource: username: root password: syc url: jdbc:mysql://localhost:3306/db4?useUnicode=true&characterEncoding=utf-8&useSSL=true&serverTimezone=UTC driver-class-name: com.mysql.jdbc.Driver jpa: show-sql: true hibernate: ddl-auto: update redis: host: 127.0.0.1 port: 6379 password: timeout: 3600ms #超时时间 lettuce: #若是在配置中配置了lettuce的pool属性,那么必须在pom.xml文件中加入commons-pool2的依赖。 pool: max-active: 8 #最大连接数 max-idle: 8 #最大空闲连接 默认8 max-wait: -1ms #默认-1 最大连接阻塞等待时间 min-idle: 0 #最小空闲连接 # jedis: # pool: # max-active: 8 #最大连接数 # max-idle: 8 #最大空闲连接 默认8 # max-wait: -1ms #默认-1 最大连接阻塞等待时间 # min-idle: 0 #最小空闲连接 复制代码
4. RedisConfig配置类简介
4.1 RedisTemplate自动装配简介
在SpringBoot中,已经自动帮我们在容器中生成了一个RedisTemplate和一个StringRedisTemplate。
下面是SpringBoot中关于RedisTemplate自动装配的源码,我们来看看:
@Configuration @ConditionalOnClass(RedisOperations.class) @EnableConfigurationProperties(RedisProperties.class) @Import({ LettuceConnectionConfiguration.class, JedisConnectionConfiguration.class }) public class RedisAutoConfiguration { @Bean @ConditionalOnMissingBean(name = "redisTemplate") public RedisTemplate<Object, Object> redisTemplate(RedisConnectionFactory redisConnectionFactory) throws UnknownHostException { RedisTemplate<Object, Object> template = new RedisTemplate<>(); template.setConnectionFactory(redisConnectionFactory); return template; } @Bean @ConditionalOnMissingBean public StringRedisTemplate stringRedisTemplate(RedisConnectionFactory redisConnectionFactory) throws UnknownHostException { StringRedisTemplate template = new StringRedisTemplate(); template.setConnectionFactory(redisConnectionFactory); return template; } } 复制代码
从上面的源码中可以看出,我们开发时会存在2个问题:
RdisTemplate的泛型是<Object,Object>,我们在进行缓存时写代码不是很方便,因为一般我们的key是String类型,所以我们需要一个<String,Object>的泛型。
RedisTemplate没有设置数据存储在Redis时,Key和Value的序列化方式(采用默认的JDK序列化方式)。
4.2 问题解决思路
那么如何解决上述两个问题呢?我们可以考虑采用下面的思路来实现:
结合@ConditionalOnMissing注解,检查Spring容器中是否已经定义了id为redisTemplate的Bean,
否则自动装配的RedisTemplate不会实例化。
因此我们可以写一个配置类,配置Redisemplate对象,若未自定义RedisTemplate,默认会对key进行jdk序列化。
所以接下来我们就要创建一个RedisTemplate对象。
4.3 RedisSerializer序列化器简介
创建Redis对象时,我们还需要利用StringRedisSerializer,Jackson2JsonRedisSerializer和JdkSerializationRedisSerializer进行序列化。当我们对同一个数据进行序列化时,序列化操作前后的结果如下表所示:
本案例中,我们对于Key采用stringRedisSerializer,而对于Value我们采用jackson2JsonRedisSerializer的序列化方式。
ObjectMapper是Jackson操作的核心,Jackson所有的json操作都是在ObjectMapper中实现的。 om.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY); 设置所有访问权限以及所有的实际类型都可序列化和反序列化 om.enableDefaultTyping(ObjectMapper.DefaultTyping.NON_FINAL); Jackson的ObjectMapper.DefaultTyping.NON_FINAL属性的作用。 复制代码
4.4 Jackson序列化特性简介
在JDK1.8中的时间类,采用了一套了新的API,但是在反序列化中,会出现异常。
com.fasterxml.jackson.databind.exc.InvalidDefinitionException: Cannot construct instance of java.time.LocalDate (no Creators, like default construct, exist): cannot deserialize from Object value (no delegate- or property-based Creator) 复制代码
5. 创建RedisConfig配置类
我们需要创建一个RedisConfig,在这个类中对Redis进行配置,创建一个RedisTemplate对象,并对Redis的缓存进行设置。
package com.yyg.boot.config; import com.fasterxml.jackson.annotation.JsonAutoDetect; import com.fasterxml.jackson.annotation.PropertyAccessor; import com.fasterxml.jackson.databind.ObjectMapper; import com.fasterxml.jackson.databind.SerializationFeature; import com.fasterxml.jackson.datatype.jsr310.JavaTimeModule; import org.springframework.beans.factory.annotation.Value; import org.springframework.cache.CacheManager; import org.springframework.context.annotation.Bean; import org.springframework.context.annotation.Configuration; import org.springframework.data.redis.cache.RedisCacheConfiguration; import org.springframework.data.redis.cache.RedisCacheManager; import org.springframework.data.redis.connection.RedisConnectionFactory; import org.springframework.data.redis.core.RedisTemplate; import org.springframework.data.redis.serializer.Jackson2JsonRedisSerializer; import org.springframework.data.redis.serializer.RedisSerializationContext; import org.springframework.data.redis.serializer.RedisSerializer; import org.springframework.data.redis.serializer.StringRedisSerializer; import java.time.Duration; /** * @Author 一一哥Sun * @Date Created in 2020/4/8 * @Description Description */ @Configuration public class RedisConfig { @Value("${spring.redis.timeout}") private Duration timeToLive = Duration.ZERO; /** * 由于原生的redis自动装配,在存储key和value时,没有设置序列化方式,故自己创建redisTemplate实例 */ @Bean public RedisTemplate<String, Object> redisTemplate(RedisConnectionFactory factory) { RedisTemplate<String, Object> template = new RedisTemplate<>(); // 配置连接工厂 template.setConnectionFactory(factory); //使用Jackson2JsonRedisSerializer来序列化和反序列化redis的value值(默认使用JDK的序列化方式) Jackson2JsonRedisSerializer jacksonSeial = new Jackson2JsonRedisSerializer(Object.class); ObjectMapper om = new ObjectMapper(); // 指定要序列化的域,field,get和set,以及修饰符范围,ANY是都有包括private和public om.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY); // 指定序列化输入的类型,类必须是非final修饰的,final修饰的类,比如String,Integer等会跑出异常 om.enableDefaultTyping(ObjectMapper.DefaultTyping.NON_FINAL); jacksonSeial.setObjectMapper(om); // 值采用json序列化 template.setValueSerializer(jacksonSeial); //使用StringRedisSerializer来序列化和反序列化redis的key值 template.setKeySerializer(new StringRedisSerializer()); // 设置hash key 和value序列化模式 template.setHashKeySerializer(new StringRedisSerializer()); template.setHashValueSerializer(jacksonSeial); template.afterPropertiesSet(); return template; } /** * 解决jdk1.8中新时间API的序列化时出现com.fasterxml.jackson.databind.exc.InvalidDefinitionException的问题 */ @Bean public ObjectMapper serializingObjectMapper() { ObjectMapper objectMapper = new ObjectMapper(); objectMapper.disable(SerializationFeature.WRITE_DATES_AS_TIMESTAMPS); objectMapper.registerModule(new JavaTimeModule()); return objectMapper; } @Bean public CacheManager cacheManager(RedisConnectionFactory factory) { RedisSerializer<String> redisSerializer = new StringRedisSerializer(); Jackson2JsonRedisSerializer jackson2JsonRedisSerializer = new Jackson2JsonRedisSerializer(Object.class); //解决查询缓存转换异常的问题 ObjectMapper om = new ObjectMapper(); om.setVisibility(PropertyAccessor.ALL, JsonAutoDetect.Visibility.ANY); om.enableDefaultTyping(ObjectMapper.DefaultTyping.NON_FINAL); jackson2JsonRedisSerializer.setObjectMapper(om); // 配置序列化(解决乱码的问题) RedisCacheConfiguration config = RedisCacheConfiguration.defaultCacheConfig() .entryTtl(timeToLive) .serializeKeysWith(RedisSerializationContext.SerializationPair.fromSerializer(redisSerializer)) .serializeValuesWith(RedisSerializationContext.SerializationPair.fromSerializer(jackson2JsonRedisSerializer)) .disableCachingNullValues(); return RedisCacheManager.builder(factory) .cacheDefaults(config) .build(); } } 复制代码
6. 创建SpringContextUtil工具类
为了方便获取ApplicationContext对象,这里我封装了一个SpringContextUtil工具类。
package com.yyg.boot.util; import org.springframework.beans.BeansException; import org.springframework.context.ApplicationContext; import org.springframework.context.ApplicationContextAware; import org.springframework.stereotype.Service; /** * @Author 一一哥Sun * @Date Created in 2020/4/8 * @Description Description */ @Service public class SpringContextUtil implements ApplicationContextAware { private static ApplicationContext context; @Override public void setApplicationContext(ApplicationContext applicationContext) throws BeansException { SpringContextUtil.context = applicationContext; } public static <T> T getBean(String name, Class<T> requiredType) { return context.getBean(name, requiredType); } } 复制代码
7. 创建RedisUtil工具类
RedisTemplate模板类可以对Redis进行添加,删除,设置缓存过期时间等设置。
RedisTemplate中主要的API是:
opsForValue()集合使用说明
set(K key,V value) 新建缓存
redisTemplate.opsForValue().set("key","value");get(Object key) 获取缓存
redisTemplate.opsForValue().get("key");
package com.yyg.boot.util; import lombok.extern.slf4j.Slf4j; import org.springframework.data.redis.core.RedisTemplate; import org.springframework.util.CollectionUtils; import java.util.concurrent.TimeUnit; /** * @Author 一一哥Sun * @Date Created in 2020/4/8 * @Description Description */ @Slf4j public class RedisUtil { //@Autowired //private static RedisTemplate<String, Object> redisTemplate; private static final RedisTemplate<String, Object> redisTemplate = SpringContextUtil.getBean("redisTemplate", RedisTemplate.class); /********************************************************************************** * redis-公共操作 **********************************************************************************/ /** * 指定缓存失效时间 * * @param key 键 * @param time 时间(秒) * @return */ public static boolean expire(String key, long time) { try { if (time > 0) { redisTemplate.expire(key, time, TimeUnit.SECONDS); } return true; } catch (Exception e) { log.error("【redis:指定缓存失效时间-异常】", e); return false; } } /** * 根据key 获取过期时间 * * @param key 键 不能为null * @return 时间(秒) 返回0代表为永久有效;如果该key已经过期,将返回"-2"; */ public static long getExpire(String key) { return redisTemplate.getExpire(key, TimeUnit.SECONDS); } /** * 判断key是否存在 * * @param key 键 * @return true 存在 false不存在 */ public static boolean exists(String key) { try { return redisTemplate.hasKey(key); } catch (Exception e) { log.error("【redis:判断{}是否存在-异常】", key, e); return false; } } /********************************************************************************** * redis-String类型的操作 **********************************************************************************/ /** * 普通缓存放入 * * @param key 键 * @param value 值 * @return true成功 false失败 */ public static boolean set(String key, Object value) { try { redisTemplate.opsForValue().set(key, value); return true; } catch (Exception e) { log.error("【redis:普通缓存放入-异常】", e); return false; } } /** * 普通缓存放入并设置时间 * * @param key 键 * @param value 值 * @param time 时间(秒) time要大于0 如果time小于等于0 将设置无限期 * @return true成功 false 失败 */ public static boolean set(String key, Object value, long time) { try { if (time > 0) { redisTemplate.opsForValue().set(key, value, time, TimeUnit.SECONDS); } else { set(key, value); } return true; } catch (Exception e) { log.error("【redis:普通缓存放入并设置时间-异常】", e); return false; } } /** * 递增 * * @param key 键 * @param delta 要增加几(大于0) * @return */ public static long incr(String key, long delta) { if (delta < 0) { throw new RuntimeException("递增因子必须大于0"); } return redisTemplate.opsForValue().increment(key, delta); } /** * 递减 * * @param key 键 * @param delta 要减少几(小于0) * @return */ public static long decr(String key, long delta) { if (delta < 0) { throw new RuntimeException("递减因子必须大于0"); } return redisTemplate.opsForValue().increment(key, -delta); } /** * 删除缓存 * * @param key 可以传一个值 或多个 */ @SuppressWarnings("unchecked") public static void del(String... key) { if (key != null && key.length > 0) { if (key.length == 1) { redisTemplate.delete(key[0]); } else { redisTemplate.delete(CollectionUtils.arrayToList(key)); } } } /** * 获取缓存 * * @param key redis的key * @param clazz value的class类型 * @param <T> * @return value的实际对象 */ public static <T> T get(String key, Class<T> clazz) { Object obj = key == null ? null : redisTemplate.opsForValue().get(key); if (!obj.getClass().isAssignableFrom(clazz)) { throw new ClassCastException("类转化异常"); } return (T) obj; } /** * 获取泛型 * * @param key 键 * @return 值 */ public static Object get(String key) { return key == null ? null : redisTemplate.opsForValue().get(key); } } 复制代码
8. 创建RedisService及其实现类
为了操作方便,我封装一个RedisService接口类,在这里封装存值和取值方法。
8.1 RedisService接口
package com.yyg.boot.service; /** * @Author 一一哥Sun * @Date Created in 2020/4/8 * @Description Description */ public interface RedisService { void setObj(String key, Object obj, long timeout); Object getObj(String key); } 复制代码
8.2 RedisServiceImpl类
然后对RedisService接口进行实现。
package com.yyg.boot.service.impl; import com.yyg.boot.service.RedisService; import com.yyg.boot.util.RedisUtil; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.stereotype.Service; /** * @Author 一一哥Sun * @Date Created in 2020/4/8 * @Description Description */ @Service public class RedisServiceImpl implements RedisService { @Autowired private RedisUtil redisUtil; @Override public void setObj(String key, Object obj, long timeout) { redisUtil.set(key,obj,timeout); } @Override public Object getObj(String key) { return redisUtil.get(key); } } 复制代码
9. 创建UserController测试接口
接着我创建一个UserController,编写几个URL接口进行测试。
package com.yyg.boot.web; import com.yyg.boot.domain.User; import com.yyg.boot.repository.UserRepository; import com.yyg.boot.service.RedisService; import org.springframework.beans.factory.annotation.Autowired; import org.springframework.web.bind.annotation.*; import java.util.List; /** * @Author 一一哥Sun * @Date Created in 2020/3/31 * @Description Description */ @RestController @RequestMapping("/user") public class UserController { @Autowired private UserRepository userRepository; @Autowired private RedisService redisService; @GetMapping("/{id}") public User findUserById(@PathVariable("id") Long id) { User user = (User) redisService.getObj("user" + id); if (user == null) { user = userRepository.findById(id).get(); redisService.setObj("user" + id, user, 1000 * 60 * 2); return user; } return user; } } 复制代码
10. 创建入口类
最后我们再编写一个程序入口类,启动项目进行测试。
package com.yyg.boot; import org.springframework.boot.SpringApplication; import org.springframework.boot.autoconfigure.SpringBootApplication; /** * @Author 一一哥Sun * @Date Created in 2020/4/8 * @Description Description */ @SpringBootApplication public class RedisApplication { public static void main(String[] args){ SpringApplication.run(RedisApplication.class,args); } } 复制代码

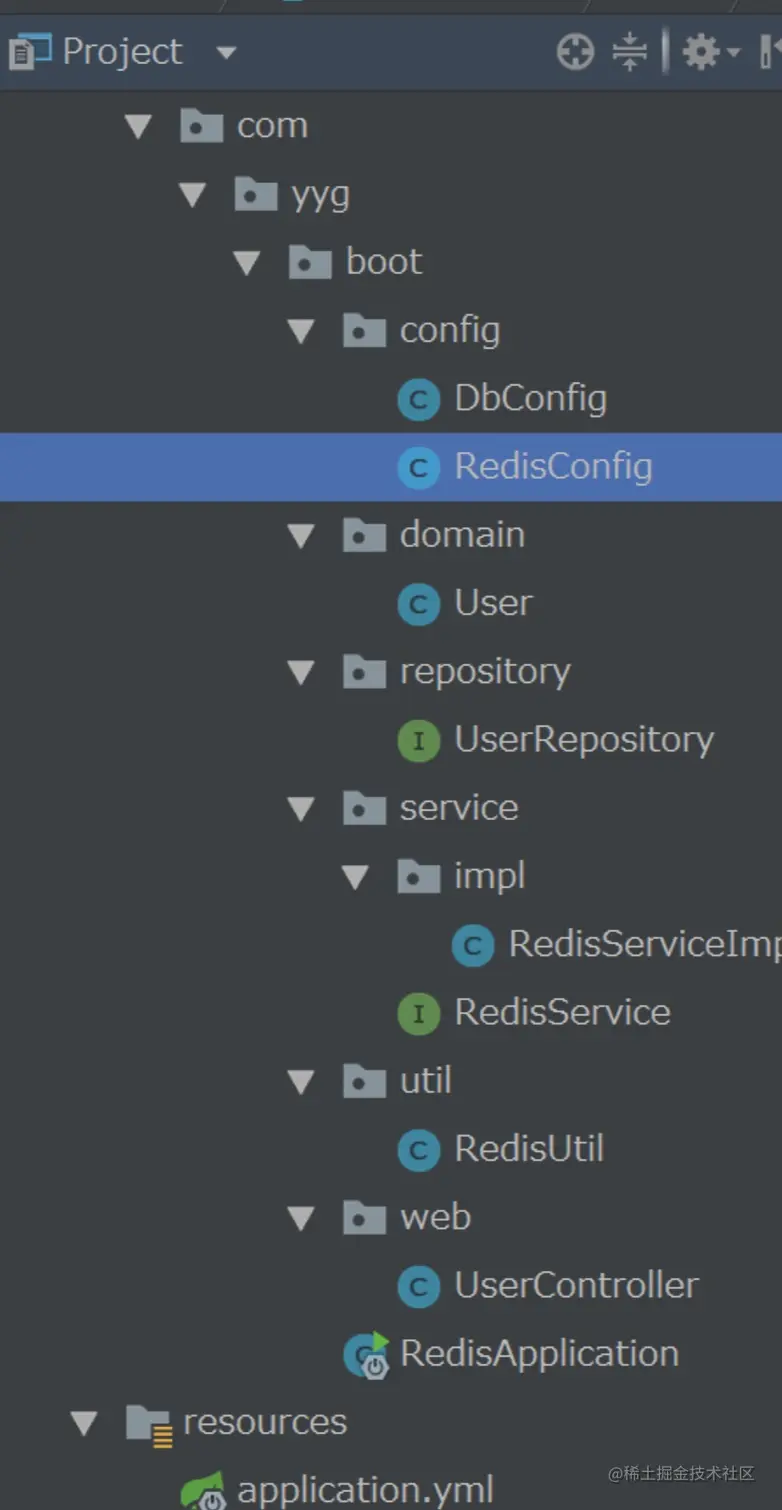

11. 项目结构
这里是完整的项目代码结构,各位可以参考创建。
12. 启动项目进行测试
12.1 数据库初始状态

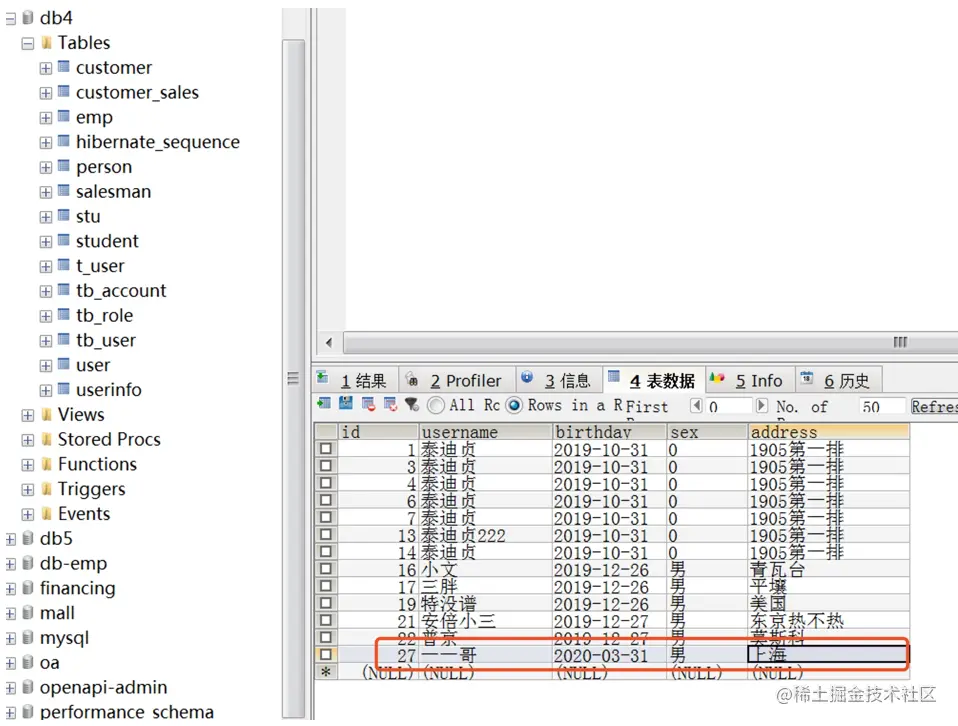

在我的MySQL数据库中,存有这样的数据。

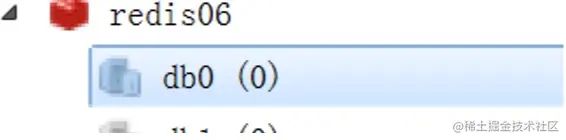

Redis数据库中默认是没有缓存数据的。
12.2 测试缓存接口

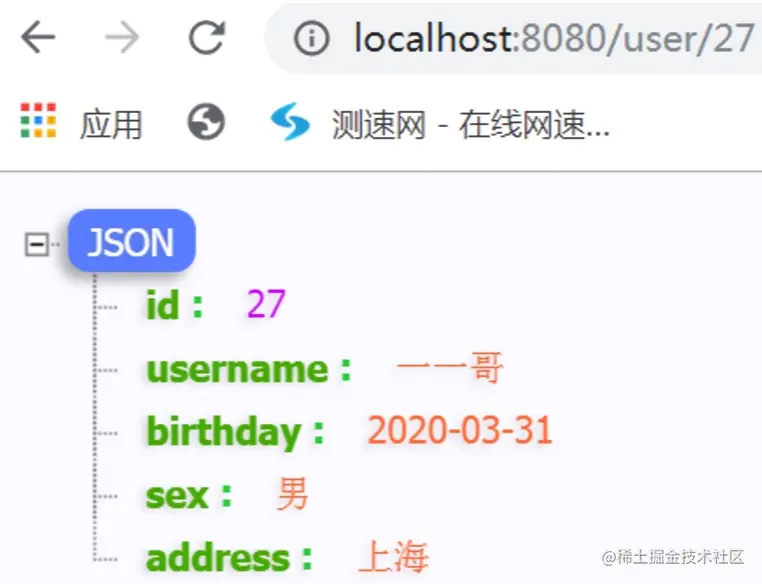

接下来我们在浏览器中输入接口地址,进行查询。
这时候我们再次去Redis DesktopManager中查看,会发现Redis中已经有了一条缓存的数据,就是我们刚才从MySQL中查询过来的用户信息。
结语
至此,壹哥 就带各位实现了SpringBoot中对Redis的整合。
今日小作业:
在学生信息系统中,新增一个登陆功能,请在登录的业务逻辑中,利用Redis对登录的用户进行存储,实现Session共享效果。
